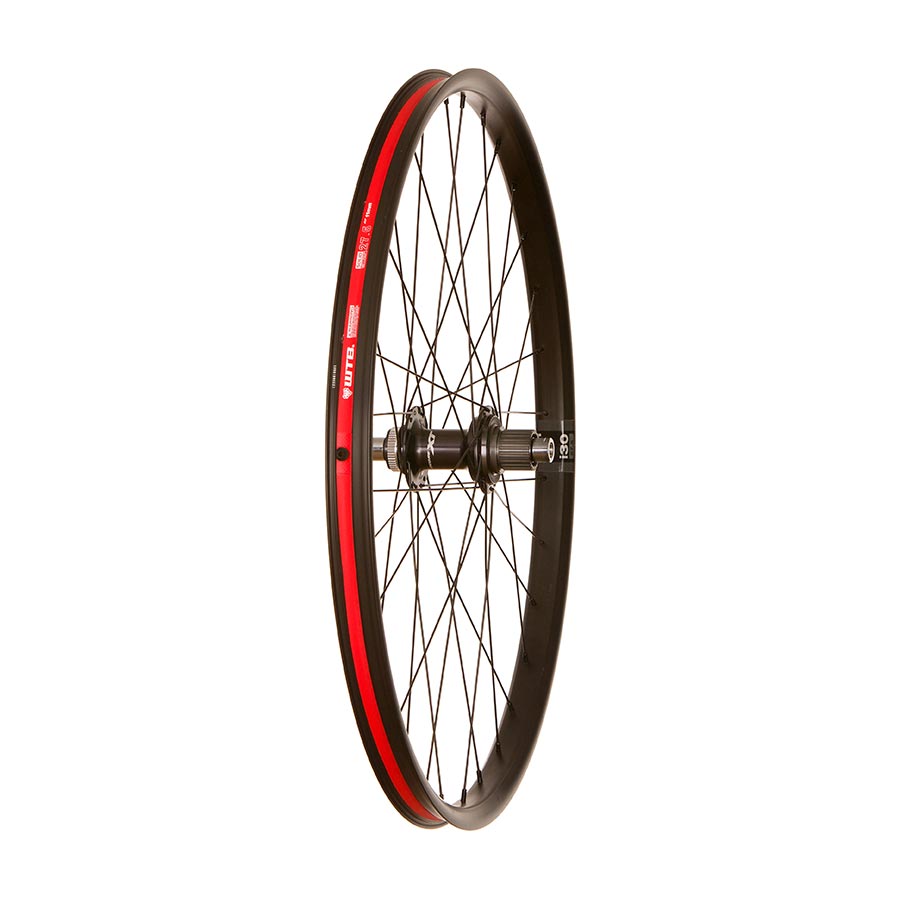

Wheel Shop WTB HTZ i30 / Shimano XT FH-M8110-B Wheel Rear 27.5 / 584 Holes: 32 12mm TA 148mm Disc Center Lock / IS 6-Bolt Shimano Micro Spline

Wheel Shop WTB HTZ i30 / Shimano XT FH-M8110-B Wheel Rear 27.5 / 584 Holes: 32 12mm TA 148mm Disc Center Lock / IS 6-Bolt Shimano Micro Spline

$299.99
$299.99 $299.99
Sale Sold out
  • Rims: WTB HTZ i30 27.5"
  • ETRTO 584-30
  • Inner width: 30mm
  • 6061 series aluminum
  • Asymetric and angled spoke hole drilling distributes spoke tension more evenly
  • Reinforced I-Beam profile
  • Strong sleeved joint
  • Drilled for Presta valve
  • TCS 2.0 Tubeless System compatible
  • Solid Strip included
  • Tubeless valve included
  • 32 holes

  • Front hub: Shimano XT HB-M8110-B Boost
  • 15x110mm (Axle not included)
  • Center Lock (6-Bolt adapter included)
  • Polished angular contact bearings
  • Contact sealed hub

  • Rear hubs options: Shimano XT FH-M8010-B (Boost, HG) / FH-M8110-B (Boost, MS) / FH-M8130-B (SuperBoost, MS)
  • Center Lock (6-Bolt adapter included)
  • Quick Engagement Freehub, 36 Points of Contact, 10 deg. engagement
  • HG compatible Shimano 11spd and Sram NX / SX splined 12spd (10spd and below needs spacer)
  • MS compatible 12 Spd Shimano Micro Spline

  • Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), Polyax Nipples (Black)
    • TECH SPECS
    Freehub Body Shimano Micro Spline
    Rim inner width range 28-34.9mm
    Hub Model Shimano XT FH-M8110-B
    Hub Spacing 148mm
    Position Rear
    Rim Drilling 32
    Valve Presta
    Rim Internal Width 30mm
    Wheel-Brake Comp. Disc Center Lock / IS 6-Bolt
    Skewers Included No
    Spoke Type Sapim Race
    Axle Type 12mm TA
    Rim Color Black
    Rim Construction Double wall Sleeved
    Rim Material Aluminum
    Rim Model WTB HTZ i30
    Wheel Diameter/ISO 27.5 / 584
    Wheel Tire Type Tubeless Compatible
